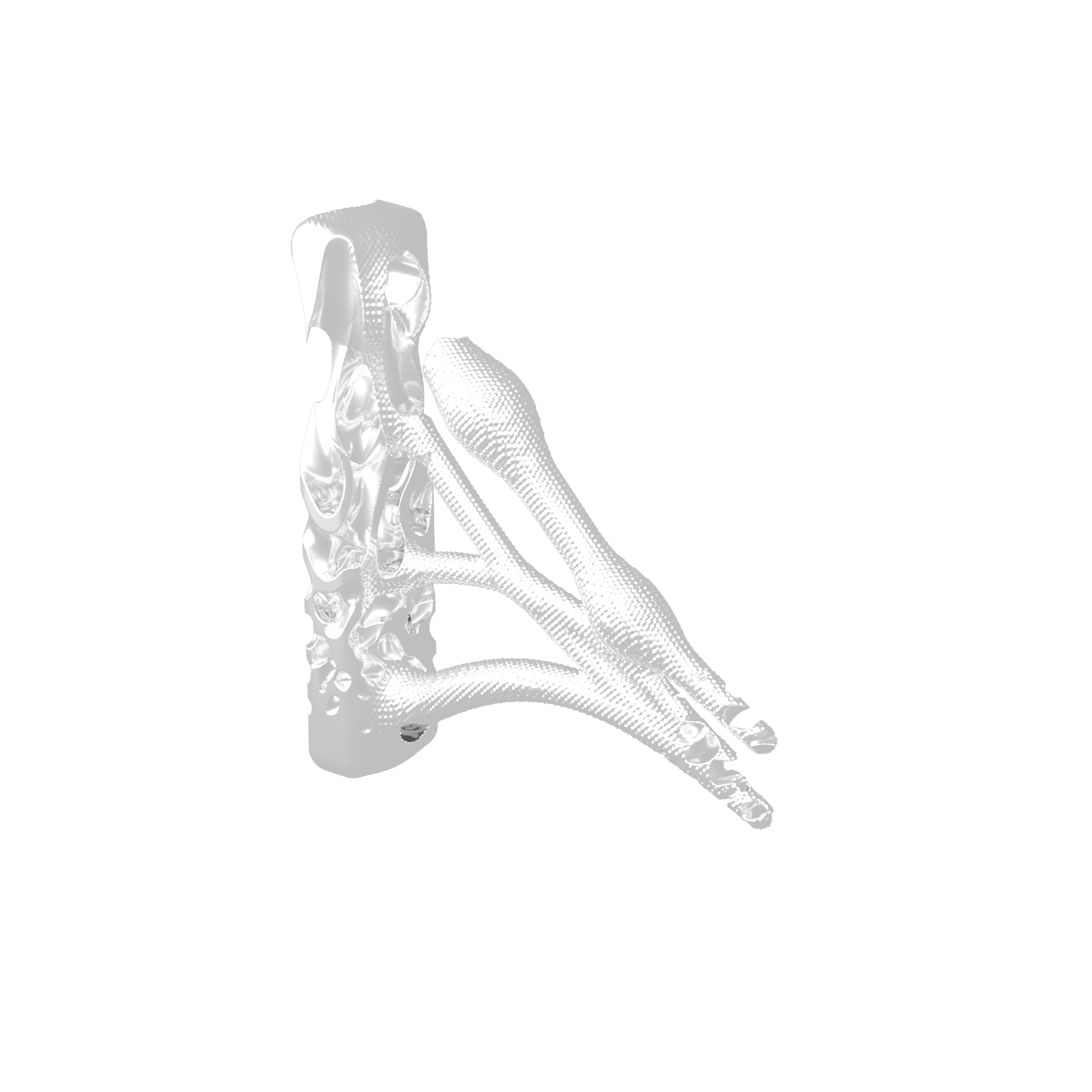

Tri-Blend
Hybrid structural ribs with gyroid core
Computational Design · 2026
Bionic TPMS Bracket Collection
Topology-optimized lattice brackets generated through TPMS surface modelling for FDM additive manufacturing.
TPMSTopology OptimizationDfAMnTopologyBlender
4
Designs
TPMS
Lattice
FDM
Ready
~40%
Lighter target
Overview
Topology-optimized bracket forms prepared as a DfAM study.
This project explores the intersection of structural performance and manufacturing feasibility through four distinct TPMS lattice bracket designs. Each bracket was generated using computational design workflows, combining topology optimization with gyroid, diamond, and hybrid lattice infill strategies.
The designs were optimized for FDM 3D printing with PLA, targeting a functional shelf-mounting application that demonstrates how biologically inspired lattice structures can replace traditional solid brackets while reducing material usage by up to 40%.
4
Designs
TPMS
Lattice
FDM
Ready
~40%
Lighter target
The Designs
Four bracket variants on one TPMS design language.
Flow Gyroid
Fluid aerodynamic gyroid lattice
Pure Gyroid
Classic continuous TPMS surface

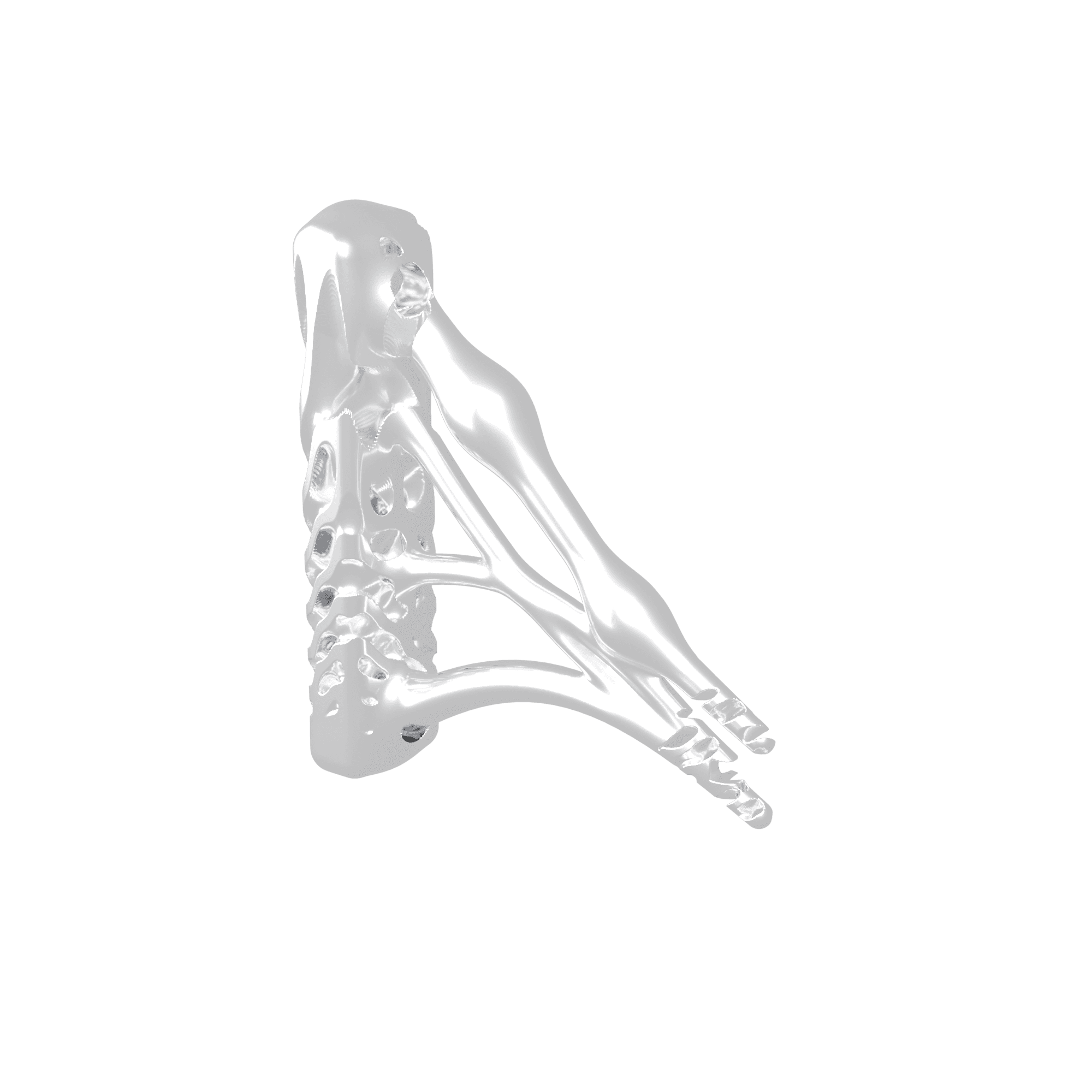

Artistic Diamond
Angular diamond TPMS variation
Process
From topology constraints to print-oriented bracket variants.
- 01
Topology Optimization
Define load cases and constraints.
- 02
TPMS Lattice Generation
Apply gyroid, diamond, and hybrid lattice strategies.
- 03
Blender Visualization
Render chrome material studies on a dark technical surface.
- 04
FDM Manufacturing
Prepare PLA-oriented bracket concepts for functional review.
